Air Hose Assemblies

10ft Hose Assembly- $35
HOSEASSEMBLY
HOSEASSEMBLY -
10ft Hose Assembly- $35
HOSEASSEMBLY20 -
20ft Hose Assembly- $46
HOSEASSEMBLY30 -
30ft Hose Assembly- $57
HOSEASSEMBLY40 -
40ft Hose Assembly- $68
HOSEWHIP2 -
2ft Hose Assembly Whip- $20
HOSEWHIP4 -
4ft Hose Assembly Whip- $24
ABS Stopcock Valve (standard)
SS200 -
ABS Stopcock Valve (standard)
SS250 -
Brass Stopcock Valve +$8
No quick-connect (standard)
NONE -
No quick-connect (standard)
SS332 -
Staubli quick-connects (male & female) +$50
QTY
$35
Product Description

Our pre-assembled Air Hose Assemblies offer a convenient way to connect your Trow & Holden Pneumatic Hammer to your compressor or regulated air flow system.  Each Air Hose Assembly is made of light, highly flexible, and very durable 3/8in air hose, starts and ends with a male 1/4NPT fitting, and includes an inline ABS stopcock valve for controlling air flow.

Air Hose Assemblies in a variety of lengths:

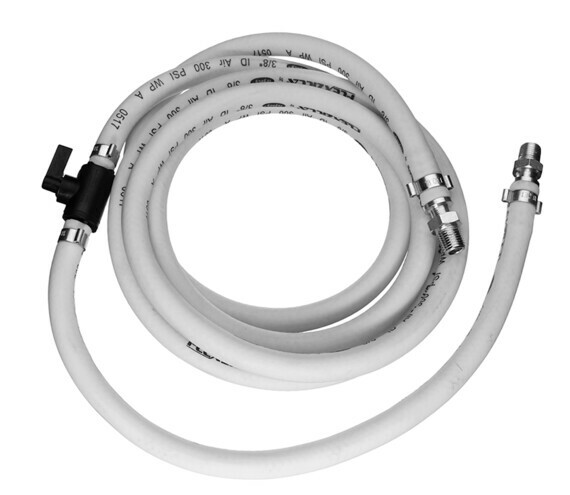

  • Full-length Air Hose Assemblies are available in 10ft increments, include all of the components listed above, and have the stopcock installed about 2ft from one end of the Air Hose.  This keeps your air control valve within convenient reach while operating your Pneumatic Hammer.

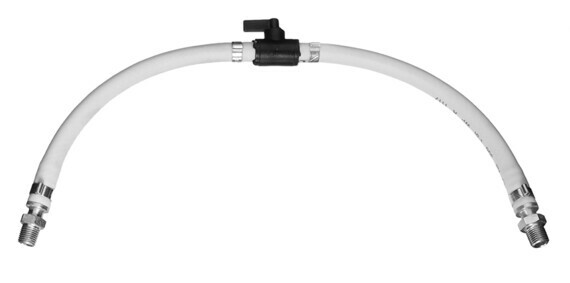

  • Whips are short Air Hose Assemblies that include all the components of a full-length assembly without the excess length of hose. Whips are available as a 2ft or 4ft assembly.  Whips are particularly convenient for customers who may not always be working in their own work space, and want to optimize their air hose and hammer configuration without the burden of unnecessary excess hose.

Upgrading the components of your Air Hose Assembly:

  • Upgrading to a BRASS stopcock valve will offer improved durability in particularly abrasive work spaces

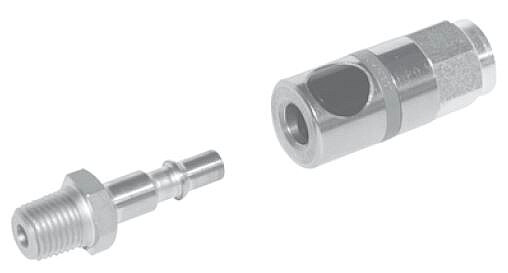

  • Quick-connect fittings make it much more convenient to maintain or change air hammers while minimizing wear and tear on threaded components. Staubli components are internationally recognized for quality and durability.  This unique quick-connect system offers a 2-stage push-button release, which makes it incredibly convenient to start/stop your air hammer without changing your air flow settings or fully disconnecting your air hammer.

Visit our Air Hose Components page to select individual components for assembling or upgrading your own air hose configuration.

Product Features
  • Full-length Air Hose Assemblies: 10ft, 20ft, 30ft, 40ft
    • male 1/4NPT end fittings
    • ABS stopcock air valve (standard)
  • Whip Air Hose Assemblies: 2ft, 4ft
    • male 1/4NPT end fittings
    • ABS stopcock air valve (standard)
  • Brass stopcock air valve (upon request)
  • Staubli Quick Connects - 1/4NPT
