Hand Splitting Wedges

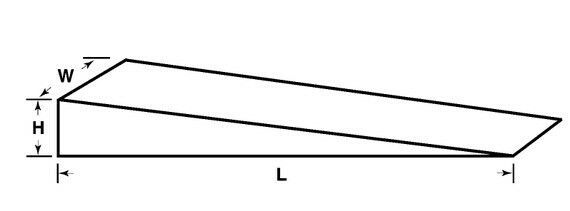

A drawing of the dimensions of a hand splitting wedge

Hand Splitting Wedge Dimensions

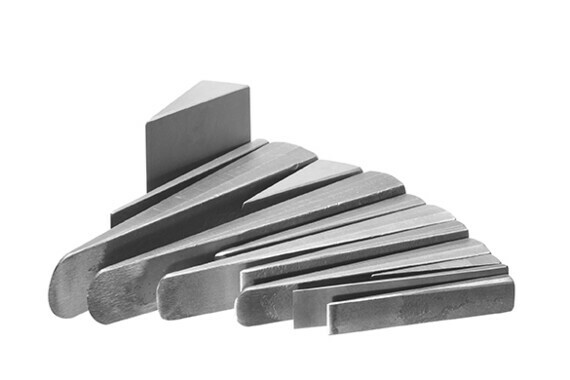

Steel Hand Wedges for splitting stone along natural cracks and seams

Hand Splitting Wedge Dimensions

Hand Splitting Wedges

Select Wedge Size

0.25 x 1.25 x 6.00- $30

HW1

HW1 -

0.25 x 1.25 x 6.00- $30

HW2 -

0.50 x 2.00 x 8.00- $40

HW5 -

0.50 x 1.00 x 6.00 - $16

HW6 -

0.75 x 1.25 x 4.00 - $16

HW7 -

0.75 x 1.50 x 8.00 - $24

HW8 -

1.00 x 1.50 x 8.00- $28

HW13 -

1.75 x 2.00 x 5.00 SMALL SLEDGE WEDGE- $40

HW14 -

1.75 x 4.00 x 5.00 LARGE SLEDGE WEDGE- $50

HW15 -

1.25 x 1.25 x 8.00- $33

HW16 -

1.50 x 1.50 x 10.00- $43

HW17 -

1.75 x 1.75 x 12.00- $58

HW18 -

2.00 x 2.00 x 12.00- $75

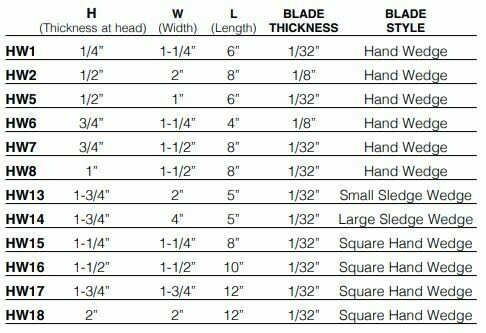

A chart listing dimensions and blade thickness of hand splitting wedges

QTY

$30

Documentation

Product Description

Like Trow & Holden's Wedges & Shims, our Hand Splitting Wedges offer another versatile and cost-effective method of splitting stone. These wedges are used within natural cracks or seams, do not require pre-drilled holes, and are most suitable for splitting softer types of stone with defined bed grain.

Hand Splitting Wedges can also be used in saw kerfs, as long as they do not bottom-out in the cut.

Please note: We are currently experiencing manufacturing delays on these items, and delivery on some styles may be extended 4-6 weeks. We will fulfill orders as soon as products become available.

Product Features

durable hardened tool steel
